How to use pneumatic applicators
Published：2014/11/25

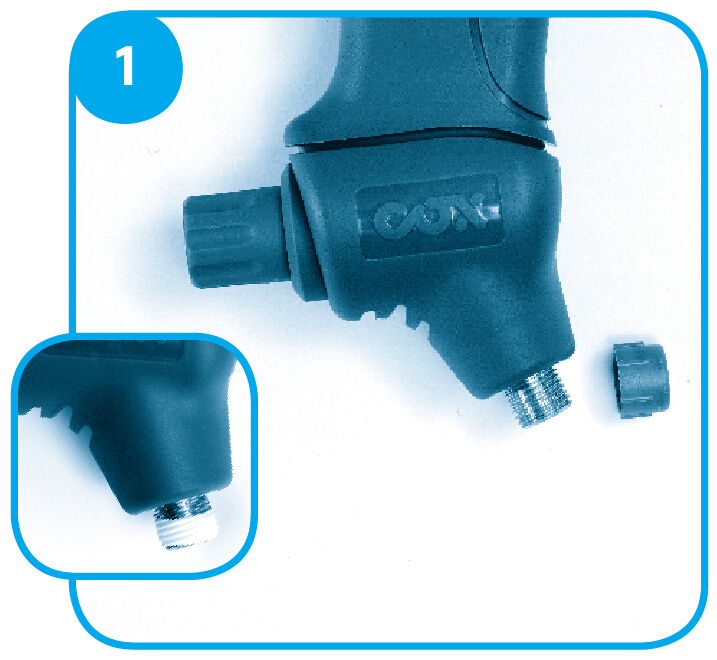

Step1：connection
Remove dust cap and seal thread (PTFE tape recommended).

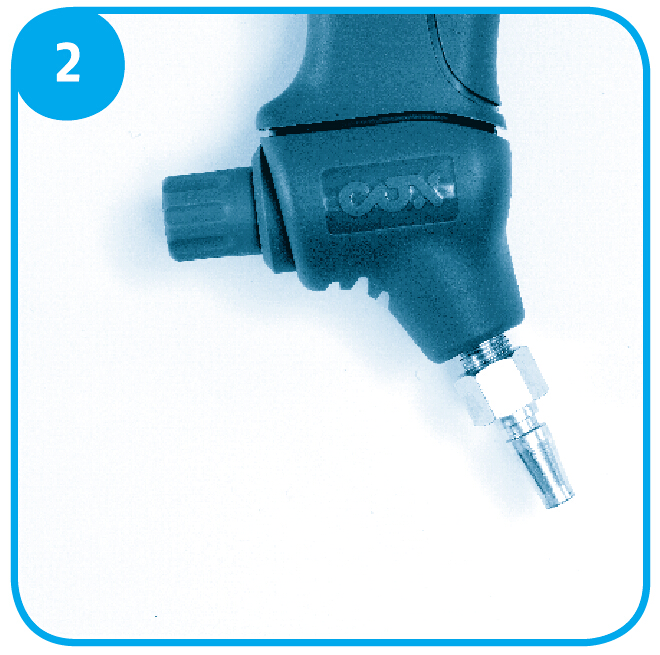

Step2：connection
Fit airline adapter (not supplied)
Step3：connection
Attach airline connection (not supplied).
Step4：loading

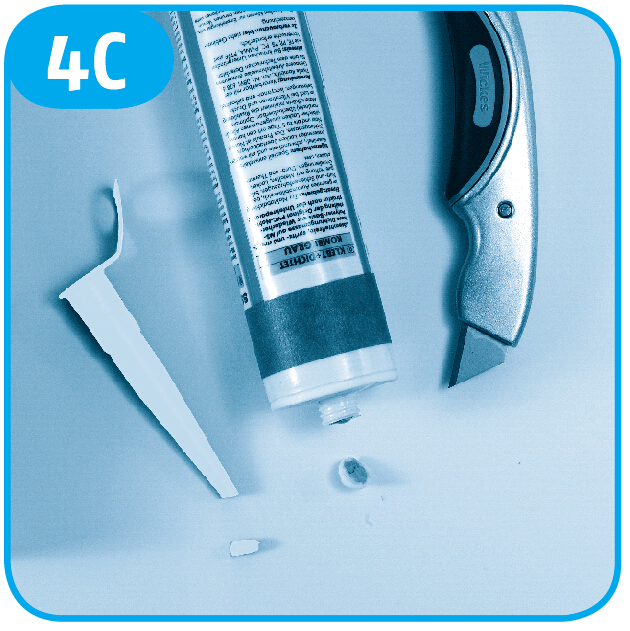

Remove cartridge and nozzle ends with a sharp knife.

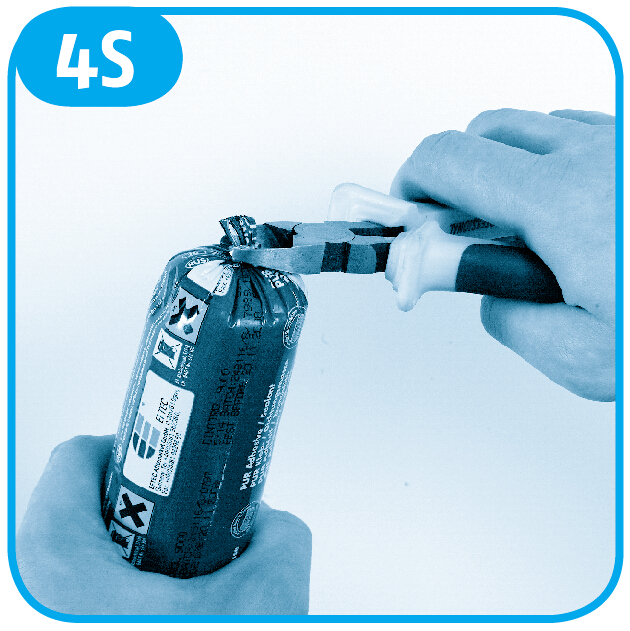

Remove tip of sachet with a pair of sharp cutters.

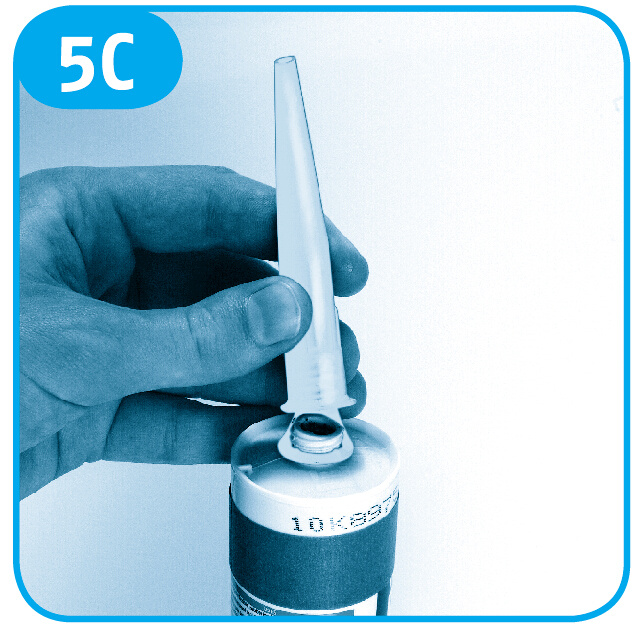

Step5：loading
Secure nozzle to cartridge.
Remove front barrel cap from applicator
and insert sachet nozzle.

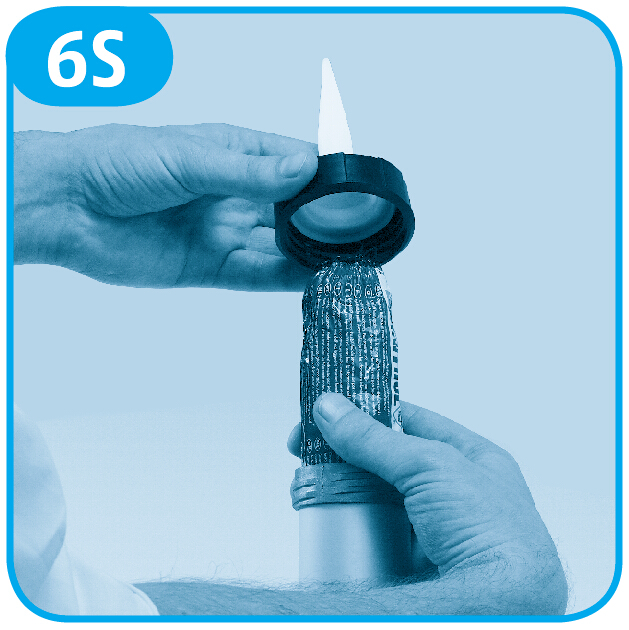

Step6：loading
Remove front barrel cap and insert cartridge into gun.
Place the open sachet into the barrel.

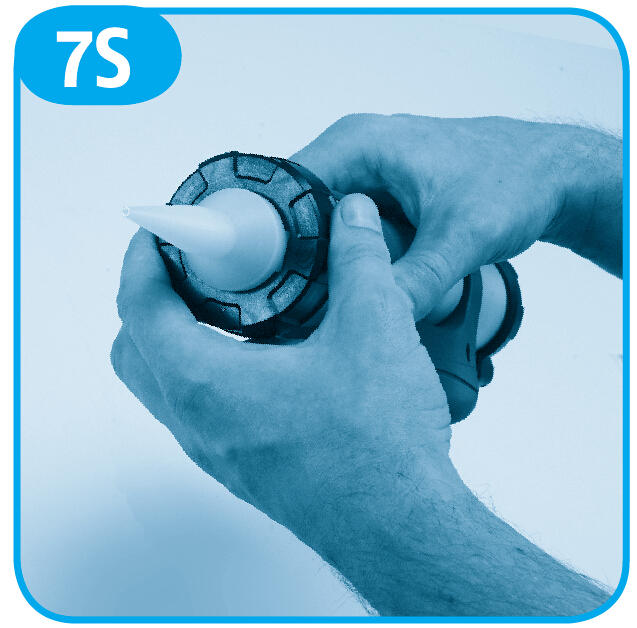

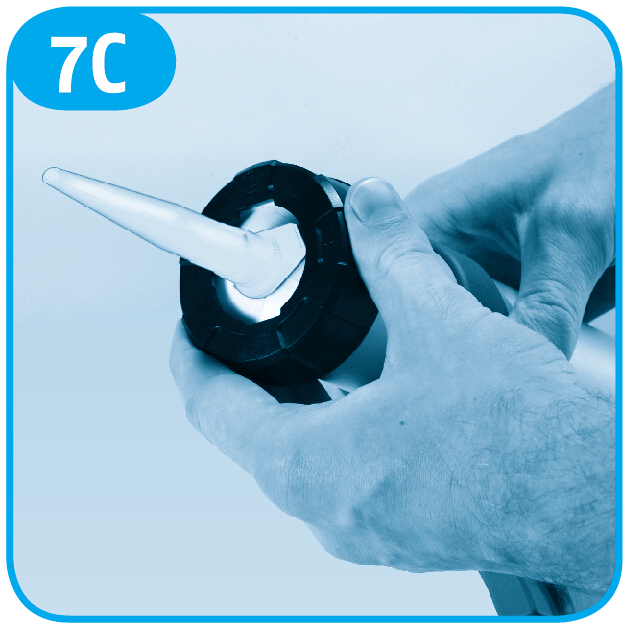

Step7：loading
Replace front cap and ensure a tight fit to barrel.
Replace front cap and ensure a tight fit to barrel.

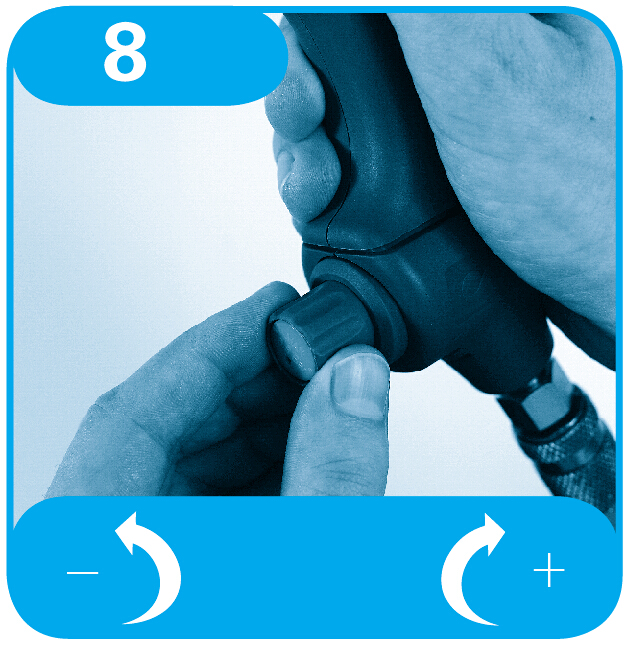

Step8：Adjust the flow
Rotate knob anticlockwise to reduce material flow.
Turn knob clockwise to increase flow.

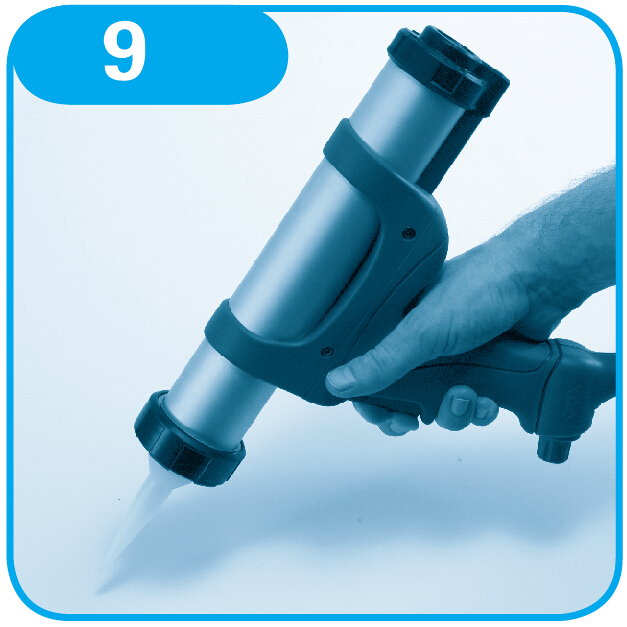

Step9：complete
Squeeze trigger to dispense material.
Release trigger to stop flow.
